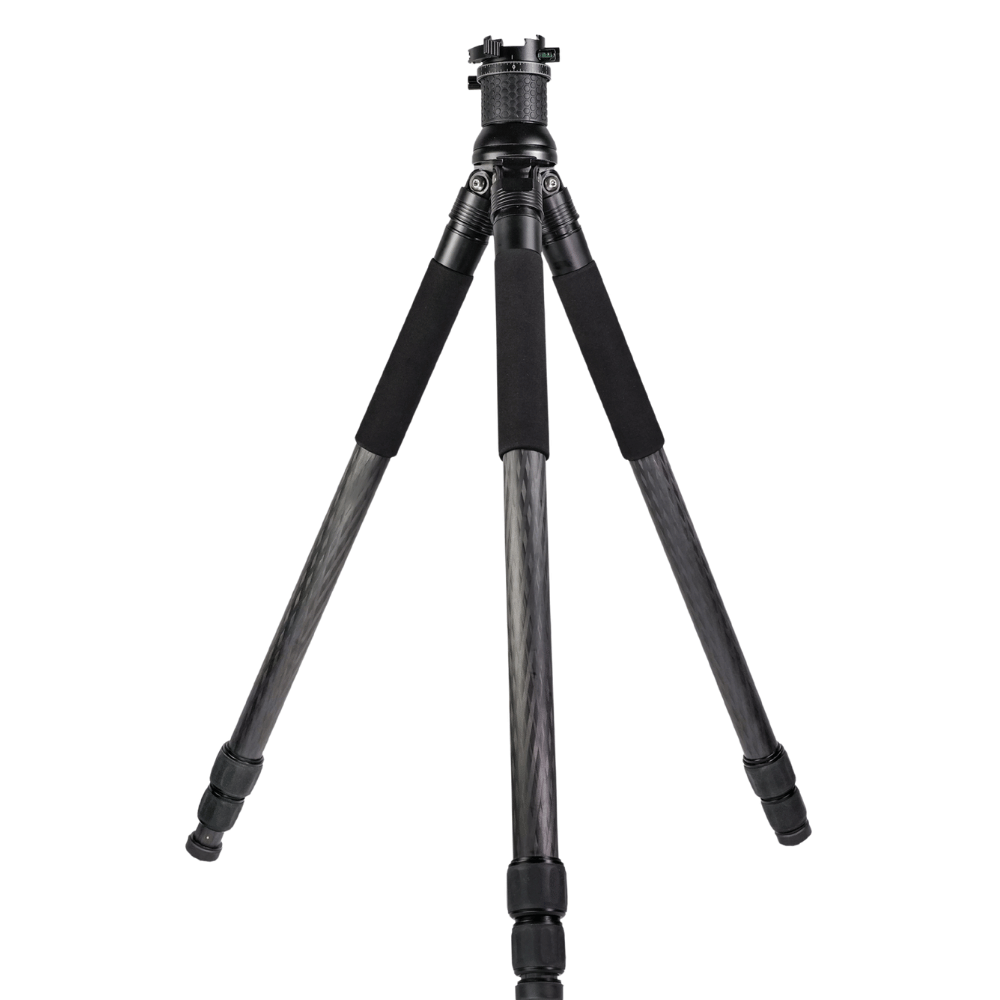

Operator 32DTC3-MIL

The Operator 32DTC3 ASFPL-MIL Tripod System is an entirely new class of tripod design. The patent pending design by Field Optics was created with the primary purpose of creating the lightest and strongest MIL/LE, hunting & shooting tripod ever invented. And we did...  The Operator 32DTC3 ASFPL-MIL is only 4.15 lbs, 58" tall with a pack dia of 3.5".

The design is similar to a BowlTop style tripod but with a DomeTOP, the tension handle is above the tripod frame rather than below the frame, in-between the legs. This provides greater access to the tension handle and far superior ergonomic control, especially in a dynamic-moving target situation.

The system has +/- 30 deg of pitch and 360+ deg of pan. It comes standard with an Arca Swiss F-Picatinny Lever Clamp head assembly and utilizes the FORI Band Clamp System. Due to its modular design, the ASFPL can be replaced by any standard tripod head via the 1/4-20 x 3/8-16 stud adapter. The tripod legs consist of 3 segment twist lock removable legs, 32mm dia carbon fiber material.

Specifications:
Head Style                   55mm dia, Arcs Swiss F-Picatinny Lever Clamp.
Tripod Interface            1/4-20 x .36 LG stud can adapt to 3/8-16 to mount any tripod head
Weight                         4.15 lbs
Max Height                   58"
Min Working Height       5.1"
Load Capacity              125 lbs
Pitch Range                  +/- 30 deg
Pan Range                    +/- 360 deg
Folded length               29"
Leg Segments              3, twist lock
Leg Type                     100% Carbon Fiber
Leg Size                      Sections: 1:32mm, 2:28mm, 3:23mm
Leg Angle Positions      25, 55, 85, 105 deg
Detachable Legs           3
Foot Style                    Rubber Foot
